100T Kitchen Utensils Deep Drawing Four Column Hydraulic Press
Machine

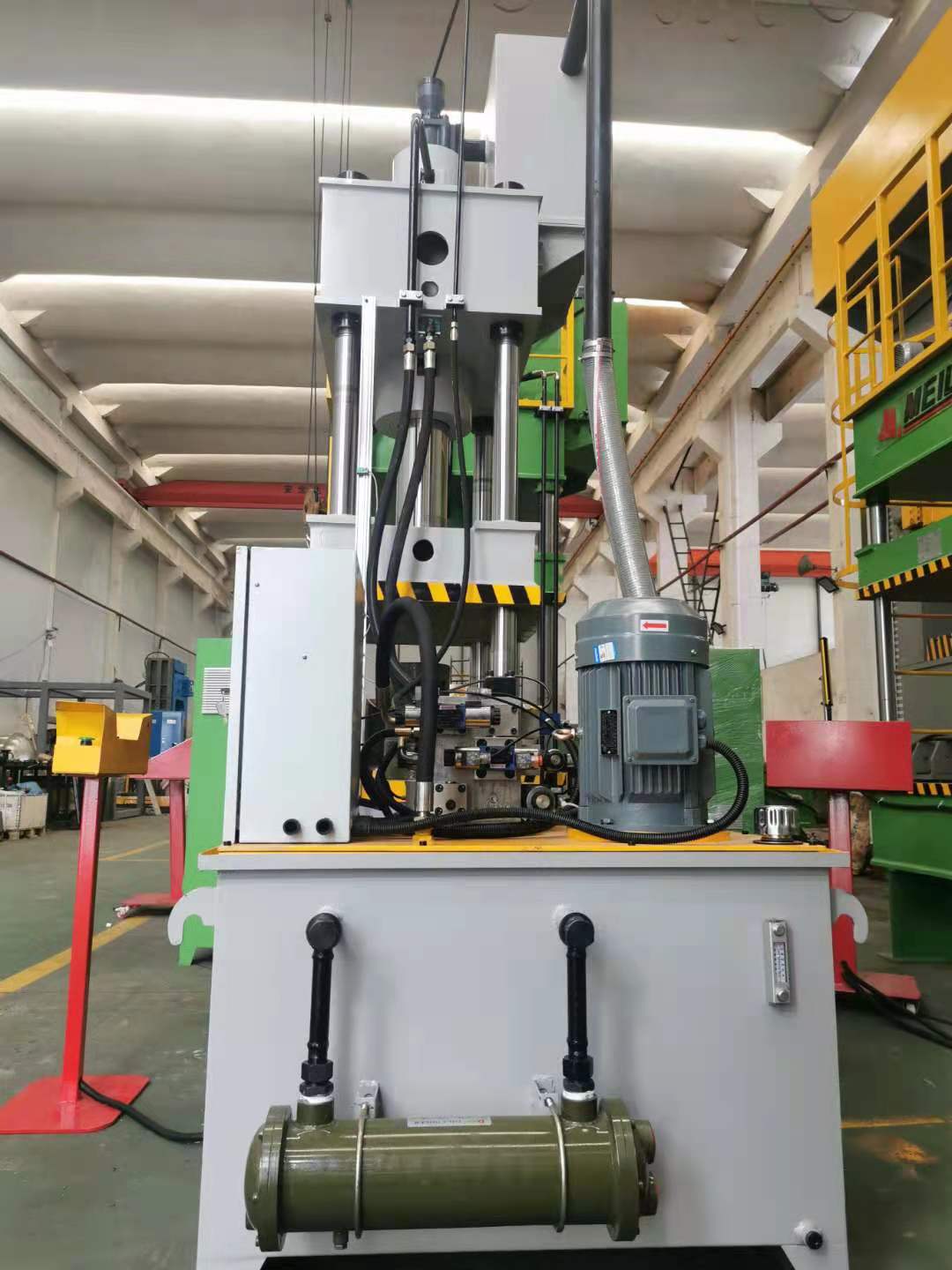

The hydraulic system of this machine includes motors, oil pumps,
control valve manifolds, oil tanks and other systems and various
connecting pipelines. The pipelines of the hydraulic system are all
connected by high-pressure flanges to avoid leakage of hydraulic
oil. All oil pipes are pickled before welding, and then after
welding slag, deburring and secondary pickling to ensure the
cleanliness of the hydraulic pipeline.
Product Description:
1. The material of column is NO.45 Steel, and chrome plating. To
increase the resistance. The slider made of top quality steel plate
and annealing process, with good rigidity and improve accuracy.
2. Including the knock out cylinder, it is easy to take out the
product.
3. It contains the supplemental oil tank on the top. The return
speed will more faster.
4. Set by the moving table, the operation is easy and safe.
5. Control system: PLC + HMI (Siemens brand), refer to pressing
technology requirement set the parameters on HMI such as pressure,
position, hold pressure, multi-pressing, etc; Easy to operation.
6. Fulfill different speed and pressure of pressing requirement,
ensures the stability of movement.
7. Intellectualization. It can provide remote diagnosis and
maintenance services.
Options
Servo system;
Die Change/Die Clamp Device;
Upper Ejector, Bottom Ejector;
Right/Left Stamping Damper Cylinders.
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 |
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production
workshop for
four columns hydraulic press,and has a number of patented
technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand
positioning the global market,
production capacity is very strong, conventional models try to
ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and
the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
