    Steel 3T Electric Servo Press Machine 0-15mm/S 3KW PLC Control

    Ask Lasest Price
    Brand Name : MEILI
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 80 Sets per Month
    Delivery Time : In 60days
    • Product Details
    • Company Profile

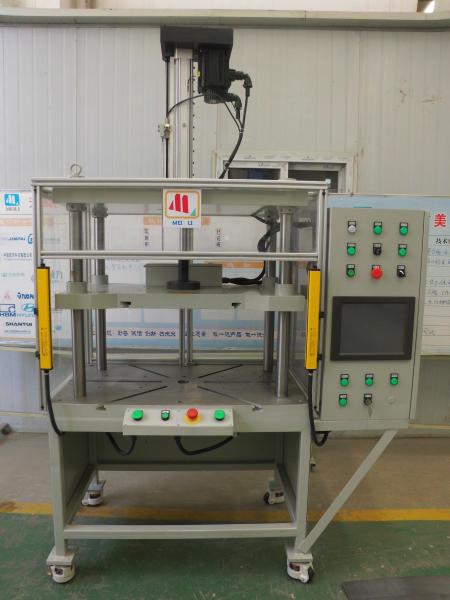

    Steel 3T Electric Servo Press Machine 0-15mm/S 3KW PLC Control

    Electric servo presses manufacturer in China

    1. Friendly man-machine interface, 200 groups of parameter programs can be accessed arbitrarily.

    2. The position is located by the electronic ruler, and the travel position can be set arbitrarily. High precision positioning adopts mechanical dead limit. The positioning accuracy is theoretically ± 0.0mm and the actual positioning accuracy is 0.01-0.02MM.

    3. The pressure is detected by the pressure sensor, and the machine pressure can be set arbitrarily.

    4. Automatic feeding of mobile worktable..

    ELECTRIC SERVO ADVANTAGES
    Energy efficient
    accuracy
    Low maintenance
    Clean
    Built to last a lifetime
    Quiet operation

    DescriptionUnit0.5T1T2T3T4T5T8T10T20T
    Nominal ForceT0.5T1T2T3T4T5T8T10T20T
    Table sizeL-Rmm300300400400400500500500600
    F-Bmm250250320320320440440440500
    Max daylightmm300300300350400450500500500
    Stroke of slidermm120120150200250250300350350
    Down speedmm/s0-80
    Working speedmm/s0-15
    Return speedmm/s0-80
    Throat Depthmm120120160160180250250250280
    Operation Heightmm750750750750750750750750750
    Powder of motorKW1223457.81120
