100T hydraulic press molding machine manufacturer in China. C-type Hydraulic Punching Press is also called Hydraulic Metal
Punching Press, it is used for blanking,stamping,punching,forming,
straightening and assembling. This machine is forming.
Machine highlight: High degree of automation, high stability,
energy saving and low noise

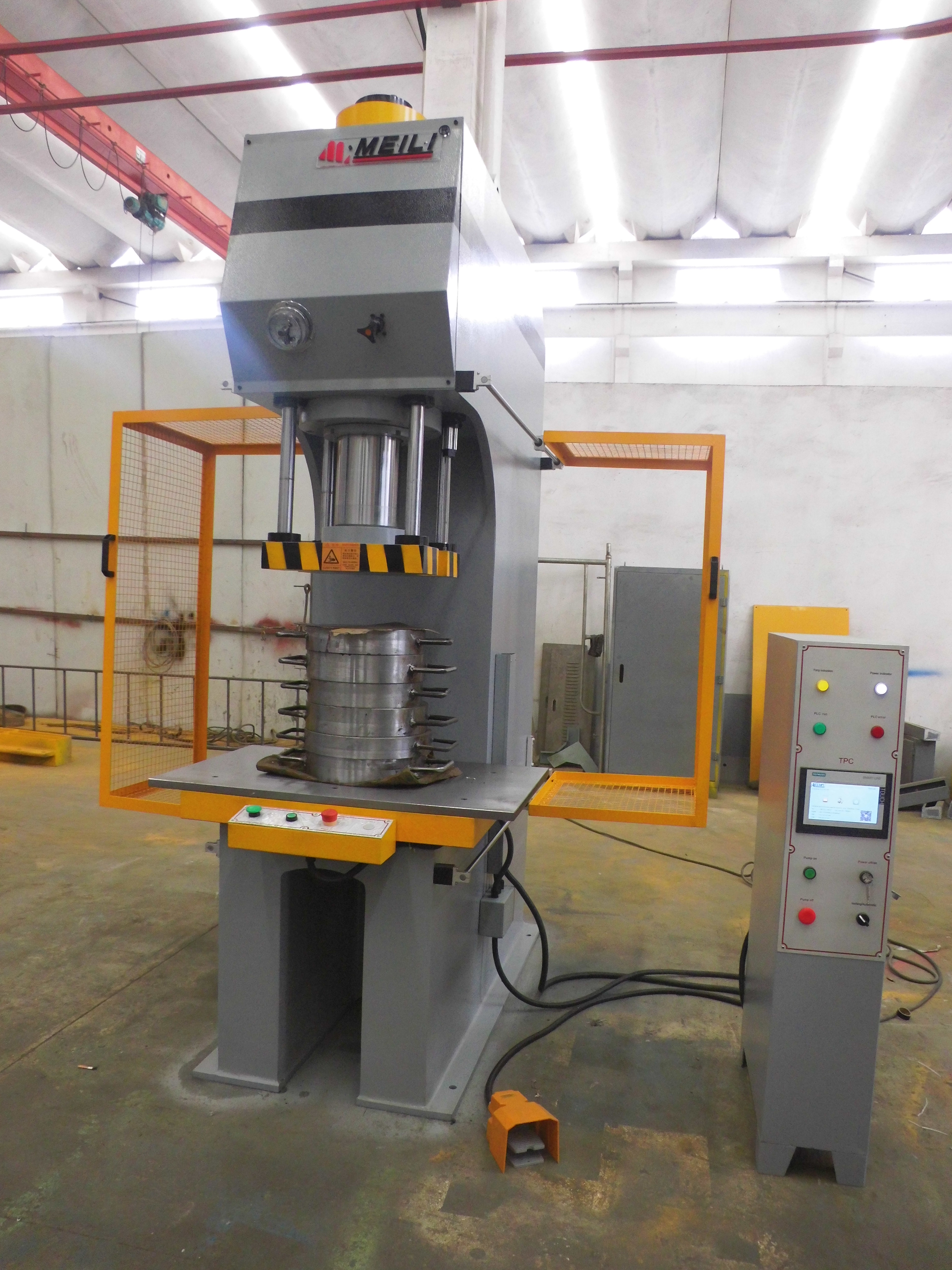

MEILI C-type Hydraulic Press is a kind of multifunctional machine
which has strong generality. It is suitable for the press fitting
of shaft components and axle sleeve parts as well as the movements
of coining and overprinting. It can also be used to press powder
and plastic products which the requirements are not strict. At the
same time, it mainly applies to the fields of machine tool,
engineering machinery, electrical components, bearings, washing
machine, automobile parts and motor components. It can even be used
as assembly line. The pressure, stroke, and time of pressure
maintaining can be regulated.
Features:
• This structure of this C Frame press looks like letter "C" and
all parts and installed in the machine body which facilitate easy
and safe operation.
• C Frame high strength structure design with three sides open for
easy material loading and product unloading as well as easy
connecting with other corollary equipment.
• This C Frame hydraulic punching press can be tailor made to meet
different application requirements.
Standard:
Light curtain safety device
Touch panel controller(TPC)
PLC program controller
Stroke,speed digital control device
Cooler device Displacemert sensor
Constant stroke/constant pressure exchange
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
| Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 |
