    160T C Frame Hydraulic Press Machine TPC 1600KN 25Mpa 11KW Industrial Hydraulic Press

    Ask Lasest Price
    Brand Name : MEILI
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 80 Sets per Month
    Delivery Time : In 60days
    • Product Details
    • Company Profile

    160T C Frame Hydraulic Press Machine TPC 1600KN 25Mpa 11KW Industrial Hydraulic Press

    Cheap C Frame Hydraulic Press Machine in China​.

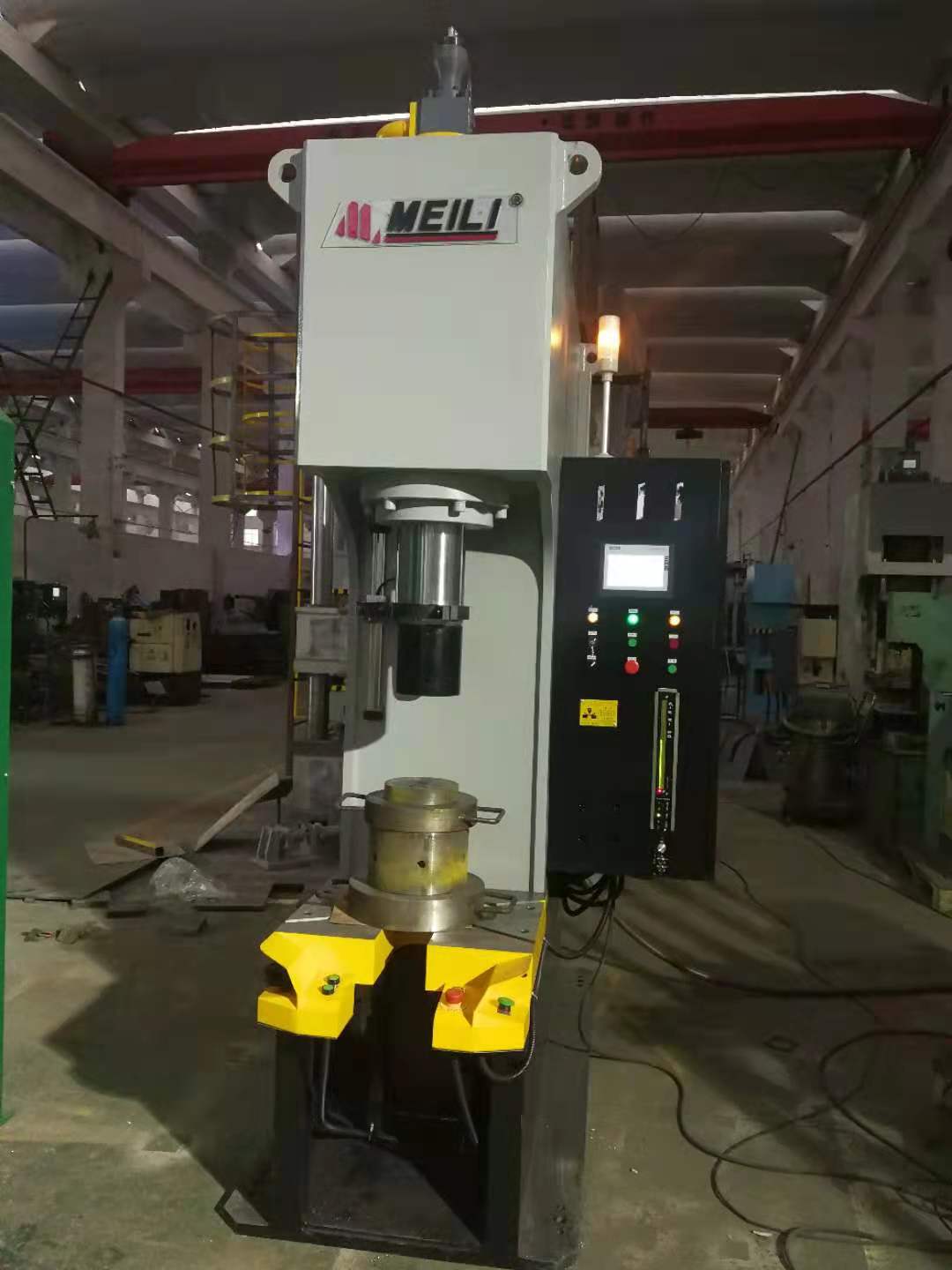

    C-FRAME HYDRAULIC PRESSES
    C-frame hydraulic presses are commonly referred to as 'C' type presses because of the characteristic shape of the machine body resembling the 'C' letter. The advantage of the C-frame presses is a possibility to access the workspace from three sides what makes the process of tooling exchange easier and enable processing of the wide elements.


    Our hydraulic presses can be used in practically every branch of industry in any technological process in which there are operations such as pressing, punching, stamping, drawing, pressing in, sizing, forming, bending, etc.


    We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.


    DescriptionUnit4T6.3T10T16T25T40T63T100T160T200T250T315T
    Nominal ForceKN406310016025040063010001600200025003150
    Max pressure of liquidMpa888132022252525252525
    Max opening heightmm400450500550600700800800800800800900
    Max stroke of slidermm200250300350350400500500500500500500
    Down speed of slidermm/s424242424242423530353030
    Return speed of slidermm/s808080808080806060656055
    Throat Depthmm180250250280280300300320320320320400
    Table sizeL-Rmm4004804806006006007008008009009001000
    F-Bmm320440440500500550600600650650650700
    Operation Heightmm710710710710710710710710710710710710
    Blanking aperturemm5050505060808080100100100120
    Powder of motorKW2.2345.55.55.57.57.5111518.518.5

    Overall size

    L-Rmm60062062065075079080010001100120012001320
    F-Bmm80010801100118012301300134014501550165017002000
    Height above the floormm170017701880210021502400250028002950300031203400
    Total weightKg45070080012001600250040005000680085001200016000
