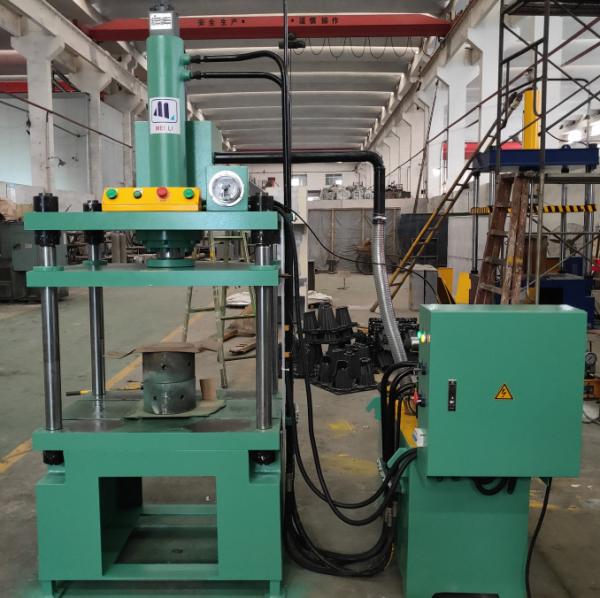

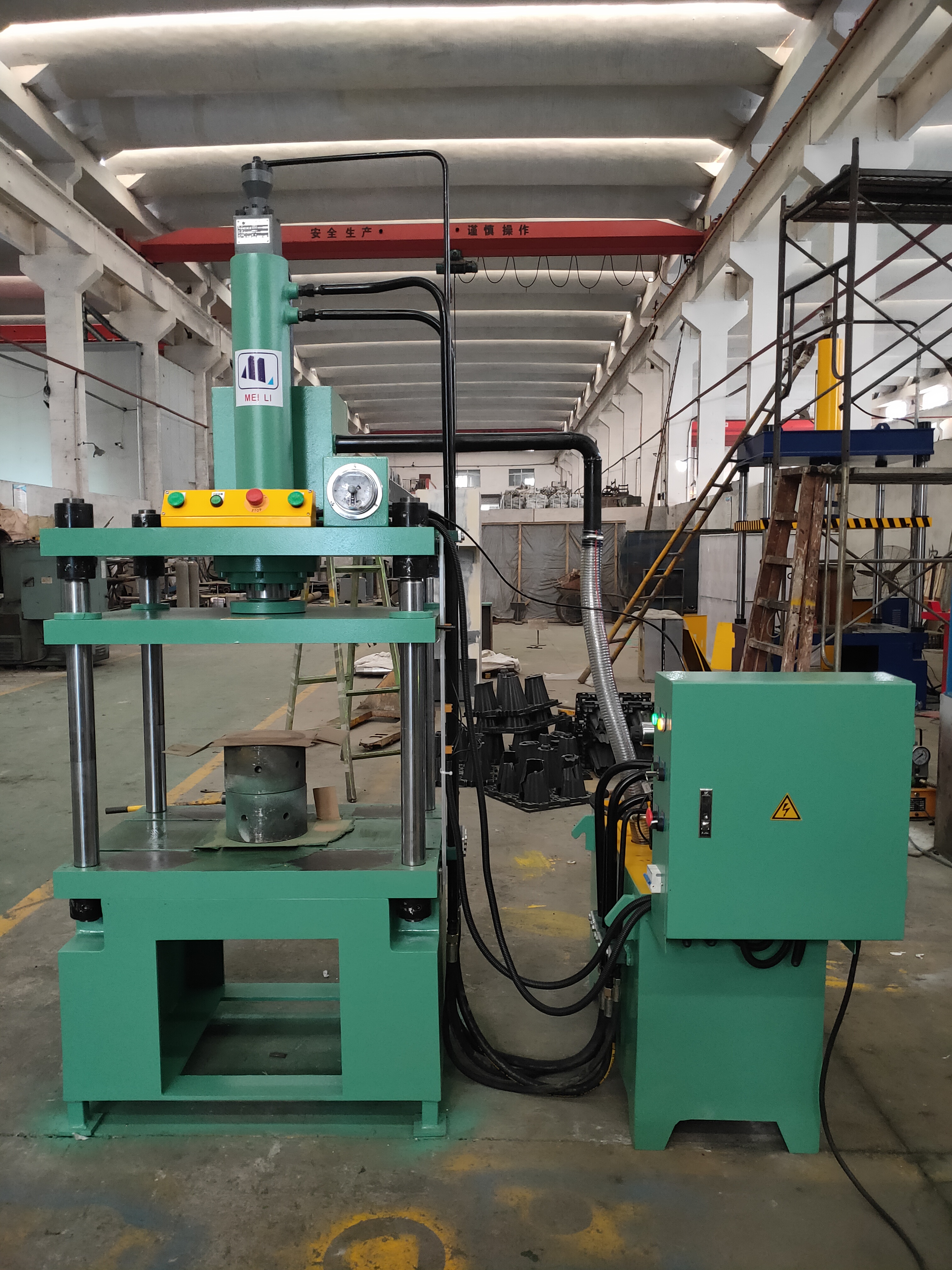

10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

    Buy cheap 10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO from wholesalers

    Buy cheap 10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO from wholesalers
    • Buy cheap 10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO from wholesalers
    • Buy cheap 10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO from wholesalers

    10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

    Ask Lasest Price
    Brand Name : MEILI
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 80 Sets per Month
    Delivery Time : In 60days
    • Product Details
    • Company Profile

    10 Ton High Speed Hydraulic Press 4 Post TPC 10KN 2.2KW CE ISO

    10 ton High Speed Hydraulic presses manufacturer in China.


    Standard:
    Light curtain safety device
    Touch panel controller(TPC)
    PLC program controller
    Stroke,speed digital control device
    Cooler device Displacemert sensor
    Constant stroke/constant pressure exchange


    Advantages:

    Independent electrical control with PLC and TPC.
    Adopted Rexroth Hydraulic valve system/Siemens Motor to ensure that the hydraulic system is not leaking.
    The pressure, stroke, and time of pressure maintaining can be regulated.
    High quality and performance with good price.


    Our product offerings include:
    Multi-action Presses
    C-Frame Presses (1-300 tons)
    4-Post Presses (up to 1,200 tons)
    H-Frame Presses(up to 1,200 tons)
    Service
    Maintenance
    Spare Parts


    DescriptionUnit10T16T25T40T63T100T200T250T315T400T
    Nominal ForceKN1016254063100200250315400
    Table sizeL-Rmm500600600600700800900900900900
    F-Bmm440500600550600600650650700700
    SliderL-Rmm400400450500500500700800800800
    F-Bmm300350350400450450550650700700
    Hydraulic cushionForceT500600700700700700
    Strokemm400400450450500500
    Max opening heightmm500550600700800800800800900900
    Stroke of slidermm300350350400500500500500500500
    Throat Depthmm250280280300300325325400400400
    Down speed of slidermm/s150150150150150150150150120120
    Working speed of slidermm/s10-15adjustable
    Return speed of slidermm/s1201201201201201201101108785
    Operation Heightmm710
    Powder of motorKW2.22.22.245.55.57.51118.522
    Total weightT11.522.53.54.57.59.61520

    MEILI has a strict policy for the choice of its components, on the basis of an extensive experience acquired over decades. All components are certified in accordance with European standards and their main sources are Germany, USA, Holland, Italy. We don’t rush or take the easy way out. Reliable press tailored to your application by MEILI who truly care about you and your business.





    Contact MEILIPRESS if your business:
    Struggles with accuracy, quality or repeatability with your current machines.And want a new one.
