16T Four Column Hydraulic Press Machine for cutting
This series hydraulic press applies to plasticity material suppress
technology , for instance: punching,bend,Flange thin stretch etc.
may be also engaged in rectification ,press fitting, The suppress
and shaping of Plastic products and powder Production.
Three beams and four columns characteristics:
3 beam 4 column structures, economical and Practical , Hydraulic
control adopts to insert set valve integrated system, decrease let
out Point , Movement reliability, durable and long life span ,It is
constant pressure to realize with calm in the first place and calm
procedure two develop technology, have to insure press the function
of delay time , The route of working pressure may be regulated in

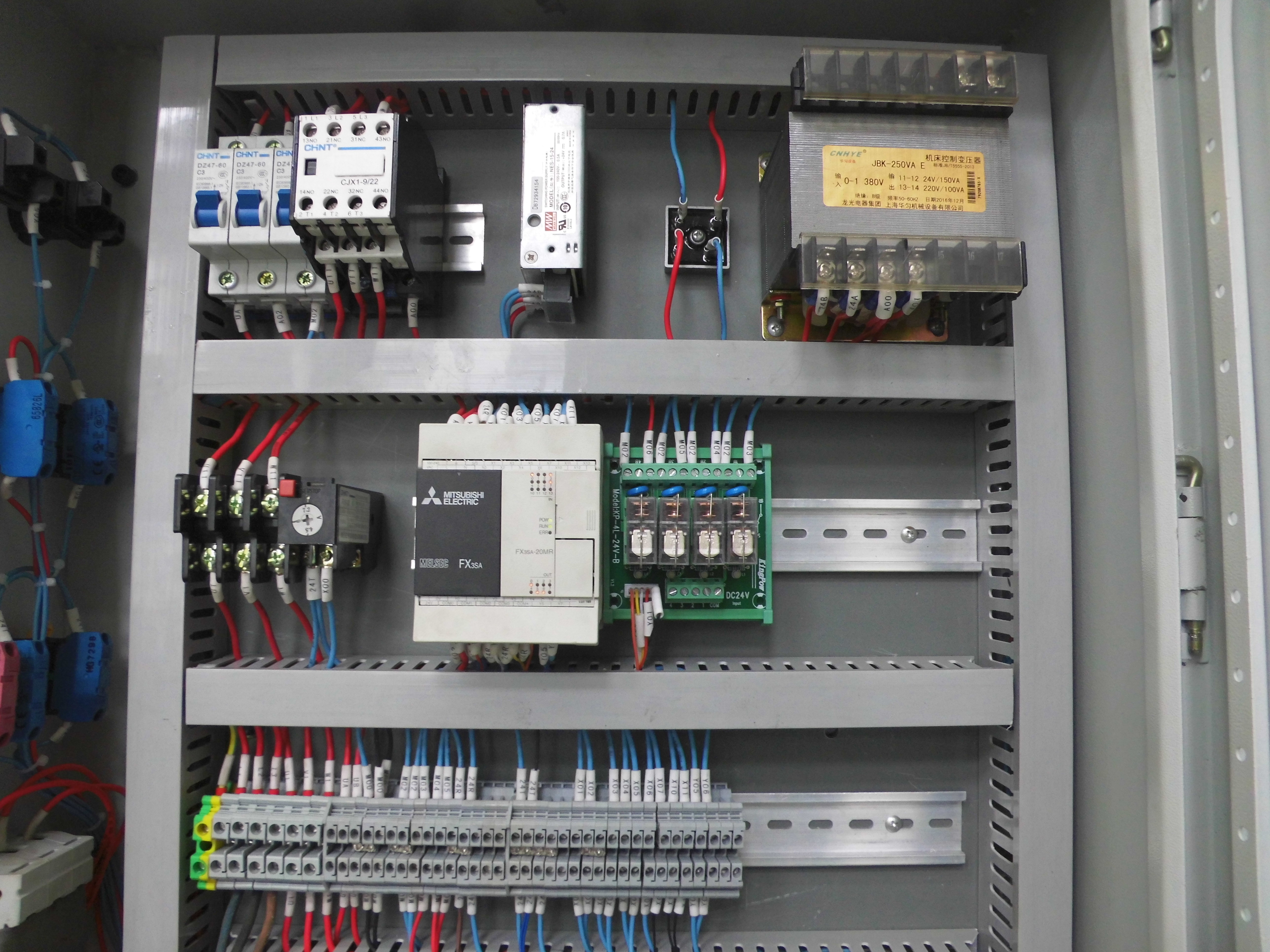

assigned scope ,adopt buttons for centralized control,Can
realization manual,Semi-automatic,automatic 3 operate form .
Specification
| specification | Unit | 40T | 63T | 100T | 160T | 200T | 315T | 500T | 630T | 1000T | 1250T | 1600T | 2000T |
| Nominal force | KN | 400 | 630 | 1000 | 1600 | 2000 | 3150 | 5000 | 6300 | 10000 | 12500 | 16000 | 20000 |
| Ejecting force | KN | 63 | 100 | 250 | 250 | 400 | 630 | 1000 | 1000 | 1600 | 1600 | 2400 | 2400 |
| Max working pressure of fluid | Mpa | 22 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Slider Stroke | mm | 400 | 500 | 500 | 500 | 700 | 800 | 900 | 900 | 900 | 900 | 900 | 1200 |
| Max opening Height | mm | 600 | 700 | 900 | 900 | 1120 | 1250 | 1500 | 1500 | 1500 | 1500 | 1600 | 2000 |
| Table Size | L-R | mm | 500 | 580 | 710 | 900 | 900 | 1200 | 1400 | 1500 | 1500 | 1800 | 2000 | 3000 |
| F-B | mm | 500 | 500 | 580 | 800 | 900 | 1200 | 1400 | 1500 | 1500 | 1600 | 1600 | 2000 |
| Ejecting stroke | mm | 120 | 160 | 200 | 200 | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 450 |
| Speed of slider | Idle stroke | mm/s | 60 | 60 | 70 | 100 | 120 | 120 | 120 | 140 | 160 | 160 | 200 | 200 |
| Pressing | mm/s | 40 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 | 8-15 |
| Returning | mm/s | 80 | 70 | 70 | 80 | 90 | 90 | 90 | 100 | 120 | 120 | 120 | 120 |
| Motor powder | KW | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 44 | 68 | 75 | 90 | 130 |
FAQ
Is it independent research and development production?
Yes!
We have a strong technical team and a complete modern production
workshop for
four columns hydraulic press,and has a number of patented
technology.
Is it possible to deliver in time?
Yes!
Our manufactory is very high degree of modernization, brand
positioning the global market,
production capacity is very strong, conventional models try to
ensure that the spot.
Whether to support OEM services, custom processing?
Yes!
We have always been in the principle of customer first,
you can tailor the design and provide a set of solutions.
Is the machine voltage adjustable and the pressure is adequate?
Yes!
The steel forming hydraulic press motor uses three-phase power and
the voltage is set according to your local voltage.
Is it possible to visit your factory? Is the traffic convenient?
Yes!
