10T C Frame Hydraulic Press Machine for sale.
Our hydraulic presses can be used in practically every branch of
industry in any technological process in which there are operations
such as pressing, punching, stamping, drawing, pressing in, sizing,
forming, bending, etc.
We specialize in designing and manufacturing hydraulic presses made
on the basis of individual needs and requirements of our customers
with the possibility to choose the main features, as well as
functionality and functional parameters.
We offer hydraulic presses with a pressing force (tonnage) from 10T
to 3 000T. All main press elements (frame, cylinders, slide,
bolster, hydraulic power unit, etc.) are made in our plant. We use
components from renowned manufacturers such as Bosch Rexroth,
Parker, Nord, SEW, Siemens, B&R, Allen Bradley, Mitsubishi,
Sick, Keyence, Balluff, etc.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 |
MEILI Hydraulic press, engineered with great care for details, is a
high quality machine tool. The studies made on the framework
flections have allowed us to design a product that reacts in the
most appropriate and responsive way to the mechanical
solicitations, therefore guaranteeing a stable structure, thus a
higher precision in deep drawing.

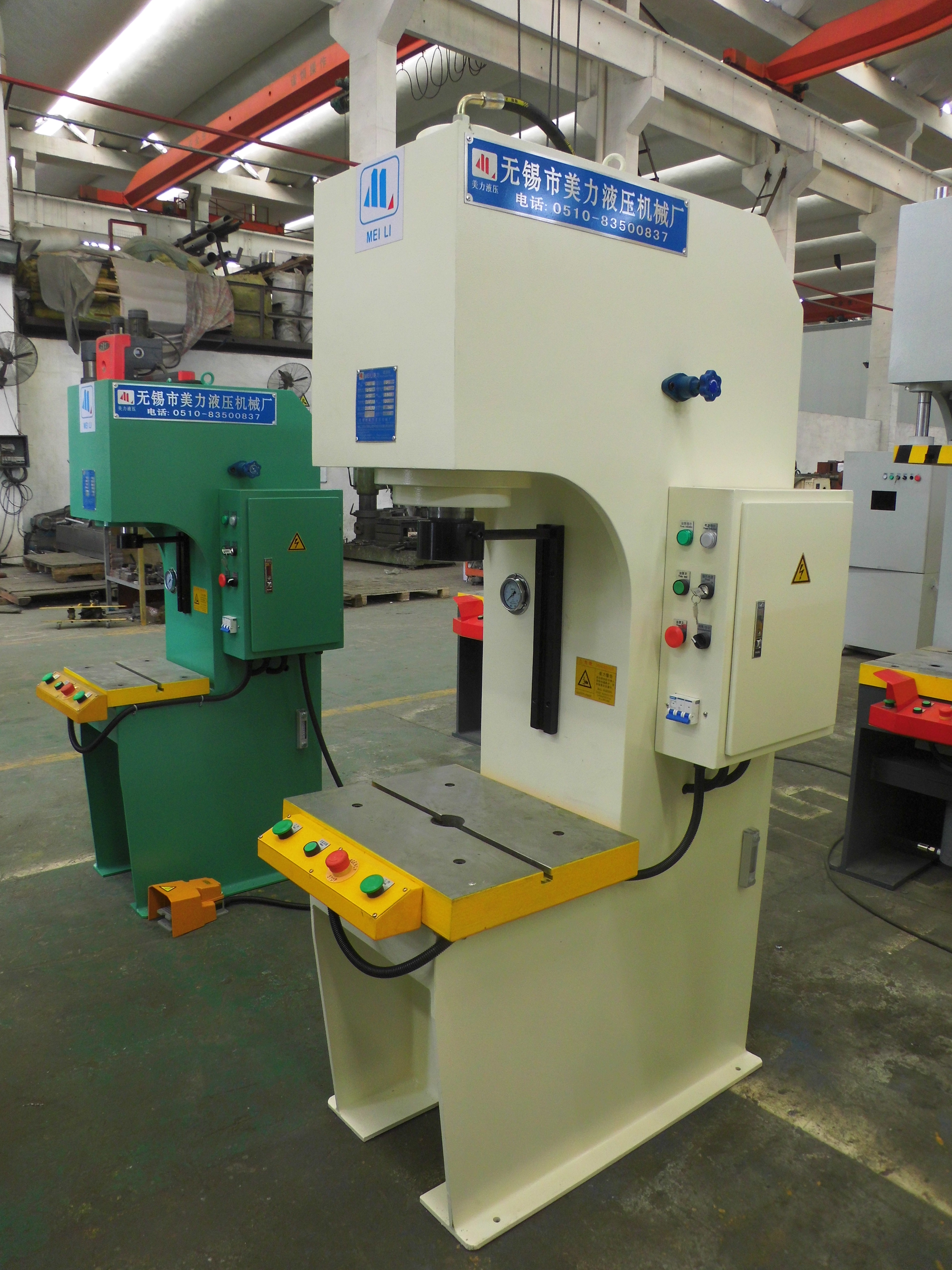

MEILI C-type Hydraulic Press is a kind of multifunctional machine
which has strong generality. It is suitable for the press fitting
of shaft components and axle sleeve parts as well as the movements
of coining and overprinting. It can also be used to press powder
and plastic products which the requirements are not strict. At the
same time, it mainly applies to the fields of machine tool,
engineering machinery, electrical components, bearings, washing
machine, automobile parts and motor components. It can even be used
as assembly line. The pressure, stroke, and time of pressure
maintaining can be regulated.
Contact MEILI when you need:
Customized hydraulic press parts in stock. Our team is just only a
phone call or email away!
FAQ
Q1: Are you trade company or manufacturer?
Answer: We are an enterprise with sales, R&D, manufacturing and
patent.
Q2: Whether to provide quality assurance and complete after-sales
support? Or say, does engineers available to service overseas?
Answer: Yes!
Q3: How can I know what kinds of the machine and which size suits
my needs best?
Answer: Before we have a deeper communication on the target
machine, the drawings, material, pics, size and production of the
products you are willing to make are necessary.
Q4: Does customized is acceptable?
Answer: Yes, we accept customized when necessary.
Q5: Why choose us ?
Our factory has specialized in independent development and
producing hydraulic press for 20 years. So the product is stable
and with high quality.
