Cheap C Frame Small Hydraulic Press Machine Factory in China.
We offer hydraulic presses with a pressing force (tonnage) from 4T
to 3 00T. All main press elements (frame, cylinders, slide,
bolster, hydraulic power unit, etc.) are made in our plant. We use
components from renowned manufacturers such as Bosch Rexroth,
Parker, Nord, SEW, Siemens, B&R, Allen Bradley, Mitsubishi,
Sick, Keyence, Balluff, etc.
We carry out our projects comprehensively, from the identification
of customer needs and the preparation of offers meeting the
customer's requirements, through design and workmanship, to
delivery combined with assembly, installation and commissioning at
the customer's location.
| Description | Unit | 4T | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T |
| Nominal Force | KN | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 |
| Max pressure of liquid | Mpa | 8 | 8 | 8 | 13 | 20 | 22 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max opening height | mm | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 800 | 800 | 800 | 800 | 900 |
| Max stroke of slider | mm | 200 | 250 | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 | 500 | 500 |
| Down speed of slider | mm/s | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 35 | 30 | 35 | 30 | 30 |
| Return speed of slider | mm/s | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 65 | 60 | 55 |
| Throat Depth | mm | 180 | 250 | 250 | 280 | 280 | 300 | 300 | 320 | 320 | 320 | 320 | 400 |
| Table size | L-R | mm | 400 | 480 | 480 | 600 | 600 | 600 | 700 | 800 | 800 | 900 | 900 | 1000 |
| F-B | mm | 320 | 440 | 440 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 650 | 700 |
| Operation Height | mm | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 | 710 |
| Blanking aperture | mm | 50 | 50 | 50 | 50 | 60 | 80 | 80 | 80 | 100 | 100 | 100 | 120 |
| Powder of motor | KW | 2.2 | 3 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 18.5 |
Overall size | L-R | mm | 600 | 620 | 620 | 650 | 750 | 790 | 800 | 1000 | 1100 | 1200 | 1200 | 1320 |
| F-B | mm | 800 | 1080 | 1100 | 1180 | 1230 | 1300 | 1340 | 1450 | 1550 | 1650 | 1700 | 2000 |
| Height above the floor | mm | 1700 | 1770 | 1880 | 2100 | 2150 | 2400 | 2500 | 2800 | 2950 | 3000 | 3120 | 3400 |
| Total weight | Kg | 450 | 700 | 800 | 1200 | 1600 | 2500 | 4000 | 5000 | 6800 | 8500 | 12000 | 16000 |
Powerful hydraulic presses can be used for a wide range of
applications such as assembly, forming and stamping. And providing great utility and minimal stroke deflection. We providing the very best in custom hydraulic presses. Contact us learn how we help your business grow.

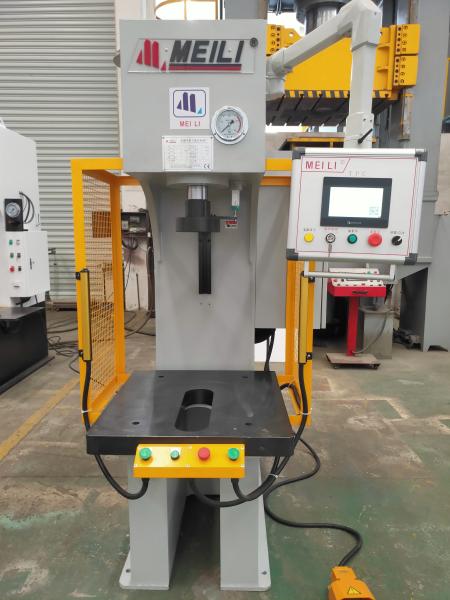

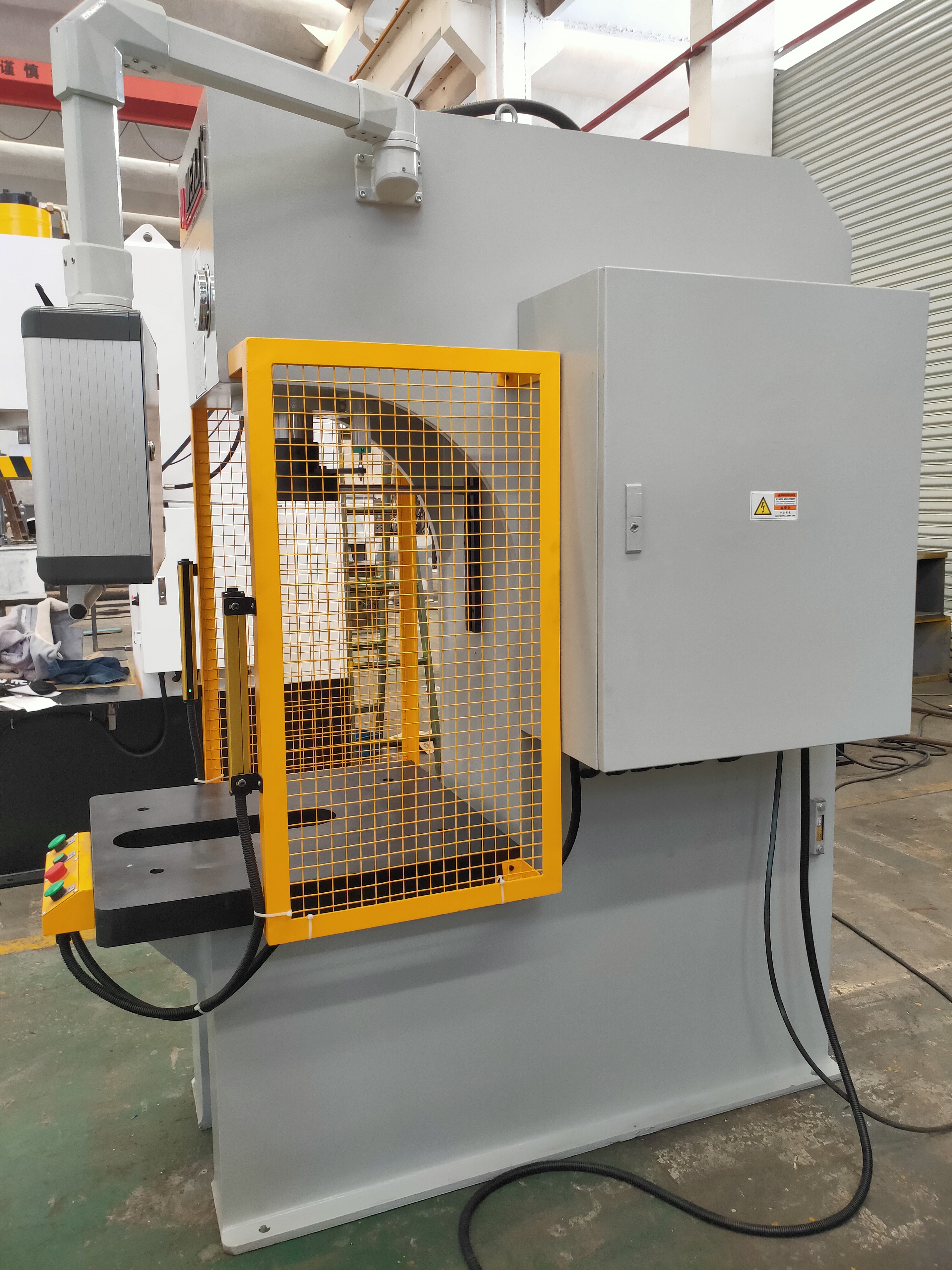

MEILI C-type Hydraulic Press is a kind of multifunctional machine
which has strong generality. It is suitable for the press fitting
of shaft components and axle sleeve parts as well as the movements
of coining and overprinting. It can also be used to press powder
and plastic products which the requirements are not strict. At the
same time, it mainly applies to the fields of machine tool,
engineering machinery, electrical components, bearings, washing
machine, automobile parts and motor components. It can even be used
as assembly line. The pressure, stroke, and time of pressure
maintaining can be regulated.
