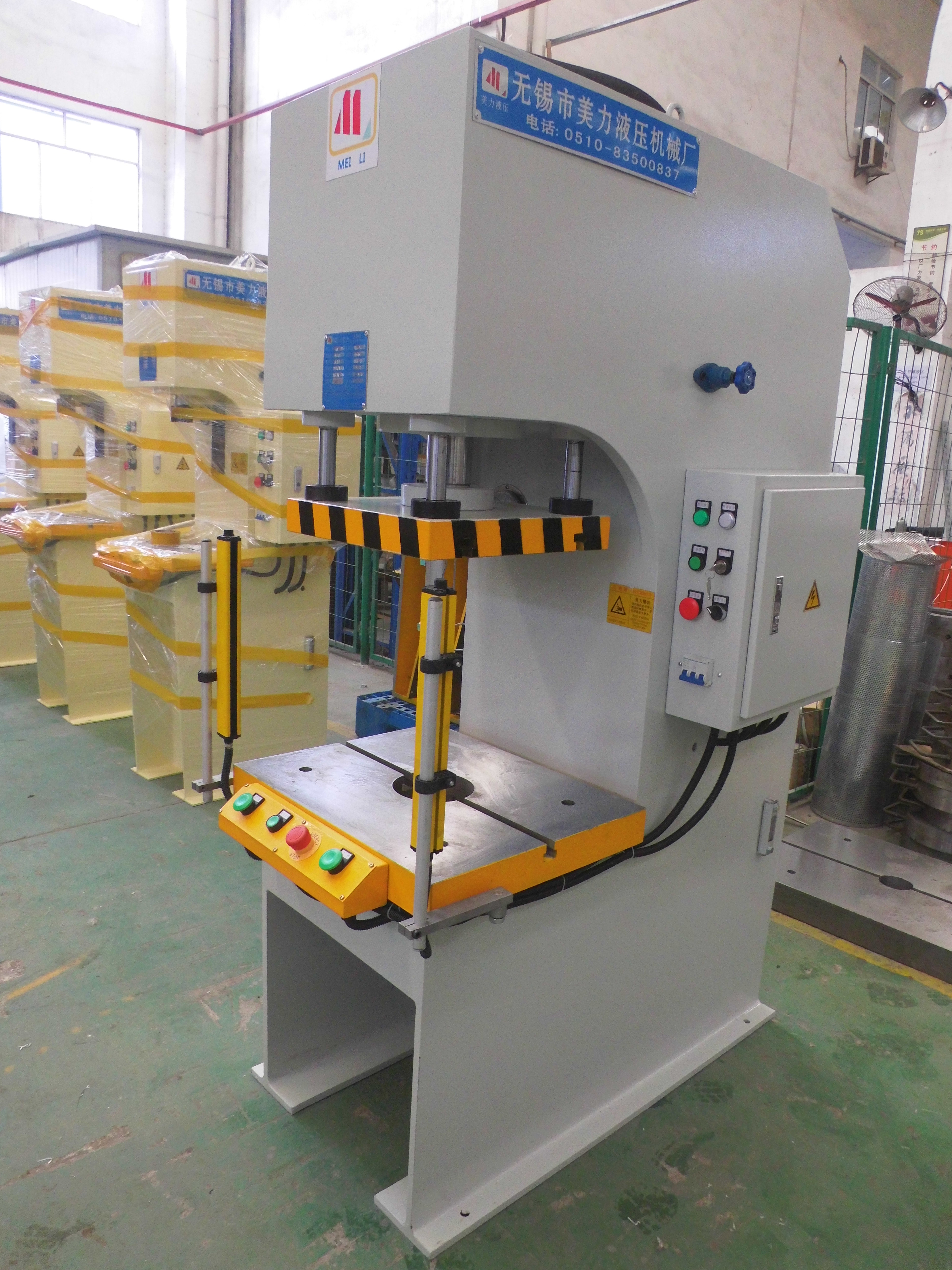

200KN C Frame Hydraulic Press Machine 20T Hyd Press Machine CNC

20T C Frame Assembly Presses.

C-Frame presses are very easy to install, use and maintain, as well as being very efficient at the high speed processing of metal sheets and other materials.

We can also custom build high speed C-Frame presses designed for large operating spaces that are suitable for both automatic operations and multi-press assembly lines. Whether you are looking for a highly specialized machine, or one that will perform at high speeds, we always deliver.

High speed C-Frame presses that can be used for a wide number of processes. These processes include assembling, riveting, molding, bending, straightening, pressing and more. With an outstanding price to performance ratio, these presses are very versatile, rigid and have long running times. We can also offer optional touch screen terminals for data storage, easy machine calibration and program configuration.

Description		Unit	4T	6.3T	10T	16T	25T	40T	63T	100T	160T	200T	250T	315T
Nominal Force		KN	40	63	100	160	250	400	630	1000	1600	2000	2500	3150
Max pressure of liquid		Mpa	8	8	8	13	20	22	25	25	25	25	25	25
Max opening height		mm	400	450	500	550	600	700	800	800	800	800	800	900
Max stroke of slider		mm	200	250	300	350	350	400	500	500	500	500	500	500
Down speed of slider		mm/s	42	42	42	42	42	42	42	35	30	35	30	30
Return speed of slider		mm/s	80	80	80	80	80	80	80	60	60	65	60	55
Throat Depth		mm	180	250	250	280	280	300	300	320	320	320	320	400
Table size	L-R	mm	400	480	480	600	600	600	700	800	800	900	900	1000
Table size	F-B	mm	320	440	440	500	500	550	600	600	650	650	650	700
Operation Height		mm	710	710	710	710	710	710	710	710	710	710	710	710
Blanking aperture		mm	50	50	50	50	60	80	80	80	100	100	100	120
Powder of motor		KW	2.2	3	4	5.5	5.5	5.5	7.5	7.5	11	15	18.5	18.5
Overall size	L-R	mm	600	620	620	650	750	790	800	1000	1100	1200	1200	1320
	F-B	mm	800	1080	1100	1180	1230	1300	1340	1450	1550	1650	1700	2000
	Height above the floor	mm	1700	1770	1880	2100	2150	2400	2500	2800	2950	3000	3120	3400
Total weight		Kg	450	700	800	1200	1600	2500	4000	5000	6800	8500	12000	16000
