Bearing Assembly Steel Hydraulic Bench Press 2500KN 25Mpa TPC

Ask Lasest Price
Brand Name :	MEILI
Certification :	CE ISO9001
Price :	Negotiable
Payment Terms :	T/T, L/C, D/A, D/P
Supply Ability :	80 Sets per Month
Delivery Time :	In 60days

Add to Cart

Product Details
Company Profile

Bearing Assembly Steel Hydraulic Bench Press 2500KN 25Mpa TPC

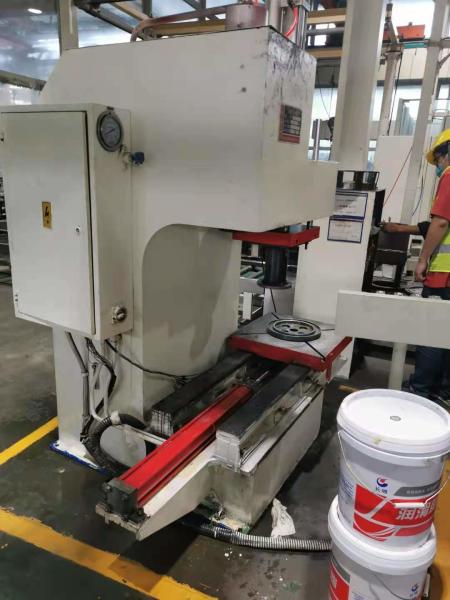

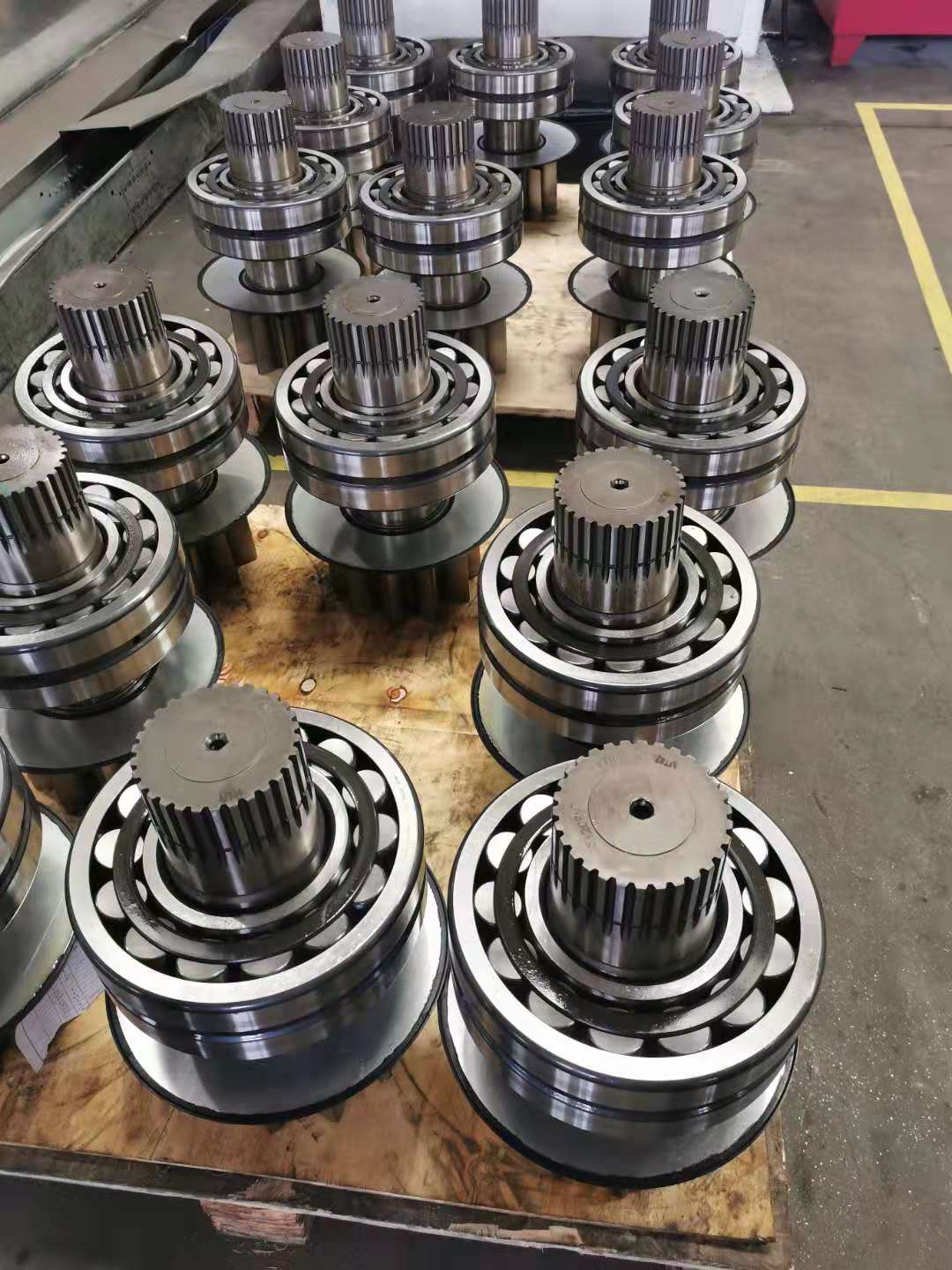

Bench Hydraulic Press Machine for bearing assembly.

C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC).

C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.

C-Frame standard models listed below are designed to be used in a variety of applications. Such all-in-one and precise design in high rigidity facilitates the machine movability and installation. The operation of machine is simple and safe. Special specifications meeting your unique demands can be incorporated into standard ones.

Description		Unit	4T	6.3T	10T	16T	25T	40T	63T	100T	160T	200T	250T	315T
Nominal Force		KN	40	63	100	160	250	400	630	1000	1600	2000	2500	3150
Max pressure of liquid		Mpa	8	8	8	13	20	22	25	25	25	25	25	25
Max opening height		mm	400	450	500	550	600	700	800	800	800	800	800	900
Max stroke of slider		mm	200	250	300	350	350	400	500	500	500	500	500	500
Down speed of slider		mm/s	42	42	42	42	42	42	42	35	30	35	30	30
Return speed of slider		mm/s	80	80	80	80	80	80	80	60	60	65	60	55
Throat Depth		mm	180	250	250	280	280	300	300	320	320	320	320	400
Table size	L-R	mm	400	480	480	600	600	600	700	800	800	900	900	1000
Table size	F-B	mm	320	440	440	500	500	550	600	600	650	650	650	700
Operation Height		mm	710	710	710	710	710	710	710	710	710	710	710	710
Blanking aperture		mm	50	50	50	50	60	80	80	80	100	100	100	120
Powder of motor		KW	2.2	3	4	5.5	5.5	5.5	7.5	7.5	11	15	18.5	18.5
Overall size	L-R	mm	600	620	620	650	750	790	800	1000	1100	1200	1200	1320
	F-B	mm	800	1080	1100	1180	1230	1300	1340	1450	1550	1650	1700	2000
	Height above the floor	mm	1700	1770	1880	2100	2150	2400	2500	2800	2950	3000	3120	3400
Total weight		Kg	450	700	800	1200	1600	2500	4000	5000	6800	8500	12000	16000
