    Steel Hydraulic Electric Servo Press CE ISO9001 220V 380V 280mm Throat Depth

    Ask Lasest Price
    Brand Name : MEILI
    Certification : CE ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 80 Sets per Month
    Delivery Time : In 60days
    • Product Details
    • Company Profile

    Steel Hydraulic Electric Servo Press CE ISO9001 220V 380V 280mm Throat Depth

    Electric servo hydraulic press delivery 1month

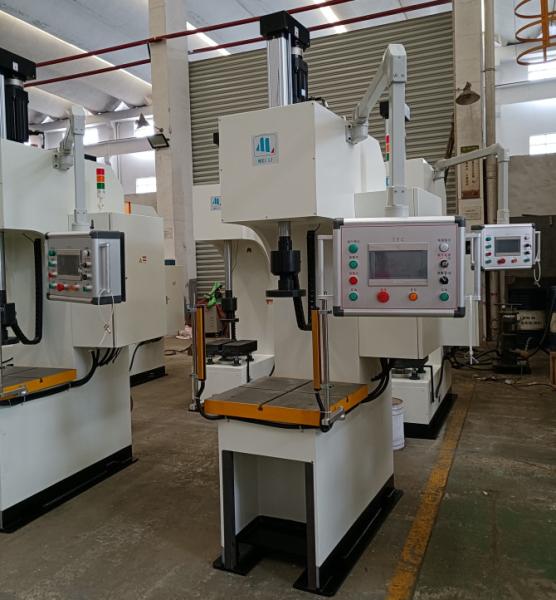

    C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting.


    It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.


    DescriptionUnit0.5T1T2T3T4T5T8T10T20T
    Nominal ForceT0.5T1T2T3T4T5T8T10T20T
    Table sizeL-Rmm300300400400400500500500600
    F-Bmm250250320320320440440440500
    Max daylightmm300300300350400450500500500
    Stroke of slidermm120120150200250250300350350
    Down speedmm/s0-80
    Working speedmm/s0-15
    Return speedmm/s0-80
    Throat Depthmm120120160160180250250250280
    Operation Heightmm750750750750750750750750750
    Powder of motorKW1223457.81120
