Brand Name : | MEILI |
Certification : | CE ISO9001 |
Price : | Negotiable |
Payment Terms : | T/T, L/C, D/A, D/P |
Supply Ability : | 80 Sets per Month |
Delivery Time : | In 60days |

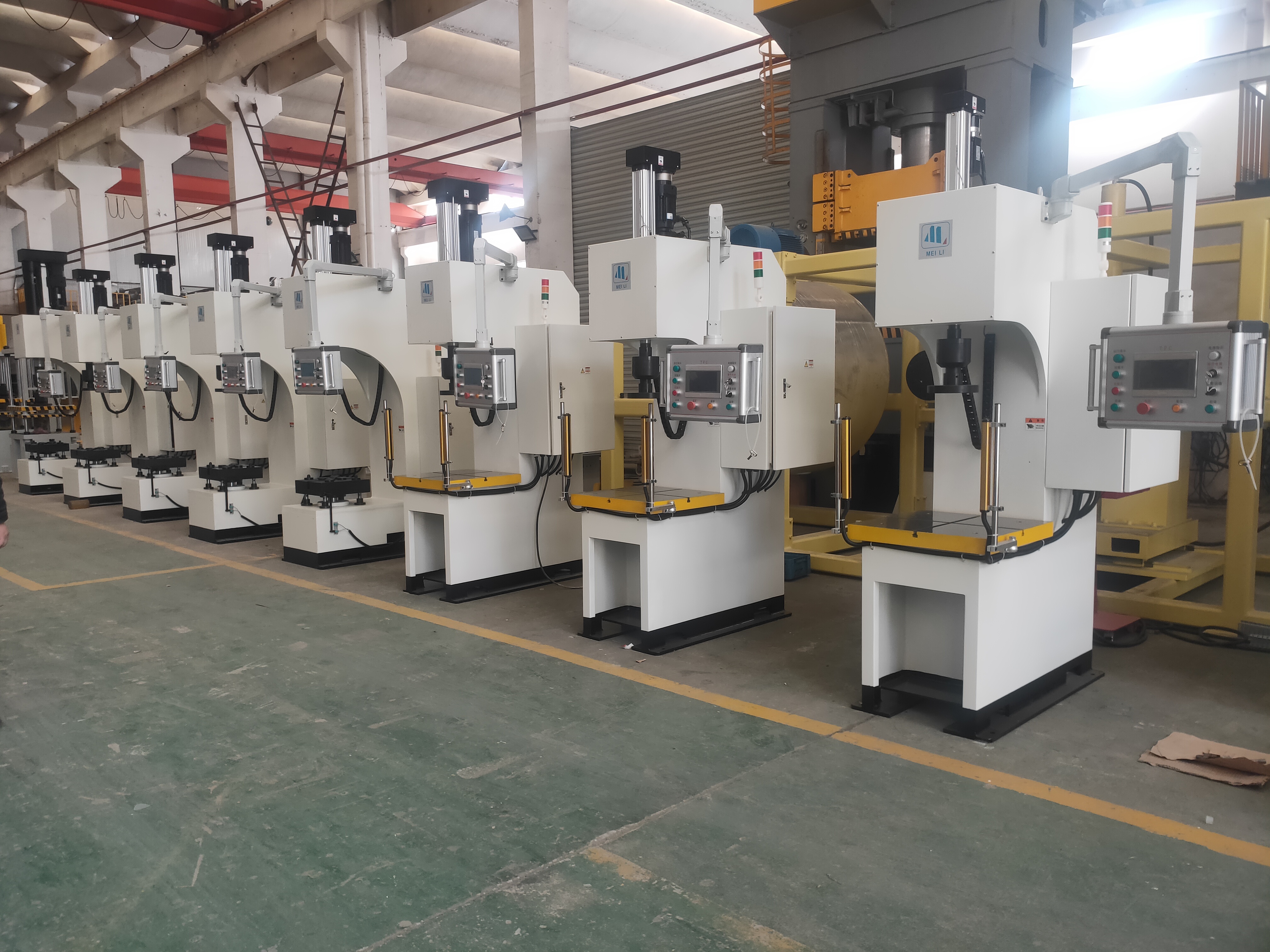

High quality Electric servo hydraulic press
Features:
1. High efficiency and energy saving, the power consumption is 30%
-50% less energy than ordinary motors.
2. Low noise, the noise can be controlled at about 60 decibels.
3. The working position, speed and pressure can be adjusted steplessly.
4. Quick response, high pressure and position repeat accuracy.
5. High efficiency, multiple protections inside, and extremely low failure rate.
Description | Unit | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
Nominal Force | T | 0.5T | 1T | 2T | 3T | 4T | 5T | 8T | 10T | 20T | |
Table size | L-R | mm | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 | 600 |
F-B | mm | 250 | 250 | 320 | 320 | 320 | 440 | 440 | 440 | 500 | |
Max daylight | mm | 300 | 300 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | |
Stroke of slider | mm | 120 | 120 | 150 | 200 | 250 | 250 | 300 | 350 | 350 | |
Down speed | mm/s | 0-80 | |||||||||
Working speed | mm/s | 0-15 | |||||||||
Return speed | mm/s | 0-80 | |||||||||
Throat Depth | mm | 120 | 120 | 160 | 160 | 180 | 250 | 250 | 250 | 280 | |
Operation Height | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
Powder of motor | KW | 1 | 2 | 2 | 3 | 4 | 5 | 7.8 | 11 | 20 |
![]() |
